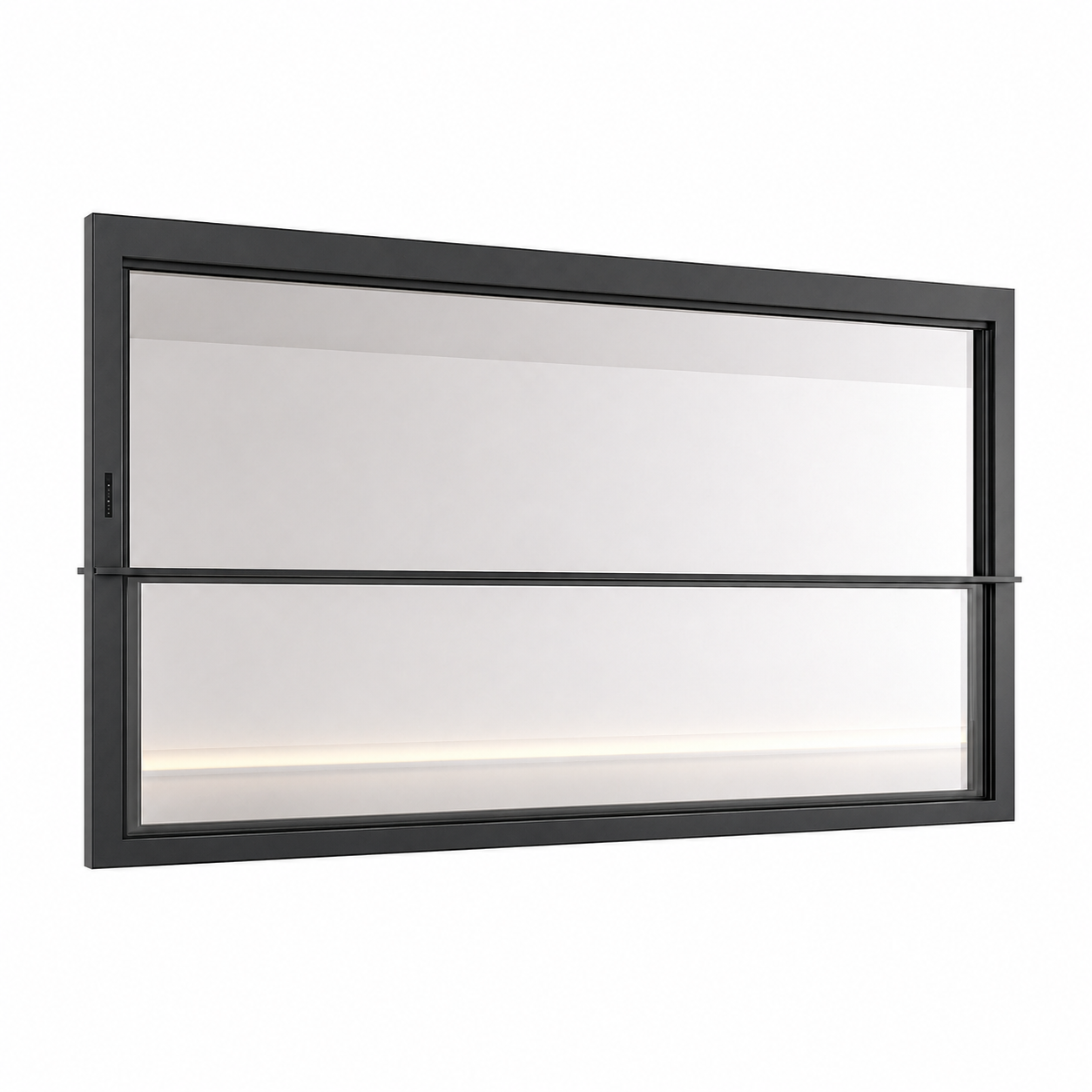

150 Series Large-Size Motorized Vertical Sliding Window

Villas | Offices | Living Room | Commercial Spaces | HOME

Why love it?

Product Features

HEAT INSULATION: U-VALUE 2.9-3.1 W/m²K
WATERPROOF: ≥400Pa
AIR TIGHTNESS: q1=1.2;q2=3.6
WIND RESISTANCE: ≥4100Pa

Invisible Engineering, Silent Guardian
Hidden strength, quiet protection. Behind its minimalist look lies top-tier sealing and acoustic performance.

Constructed from durable materials
The main frame is manufactured from 6063-T5 silicon-magnesium aluminum alloy, offering exceptional strength, corrosion resistance, and long-term structural stability—ideal for large openings and high-rise applications.

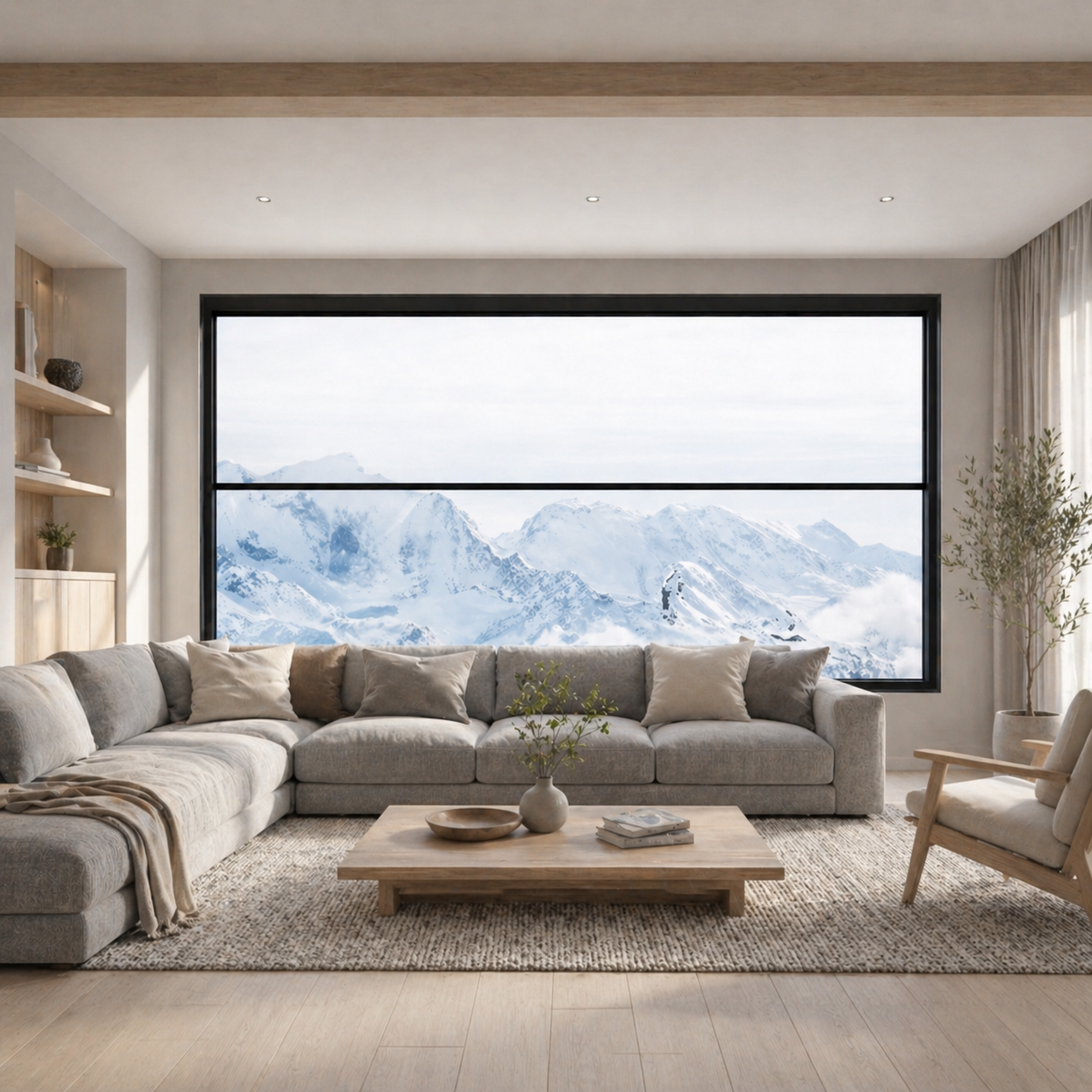

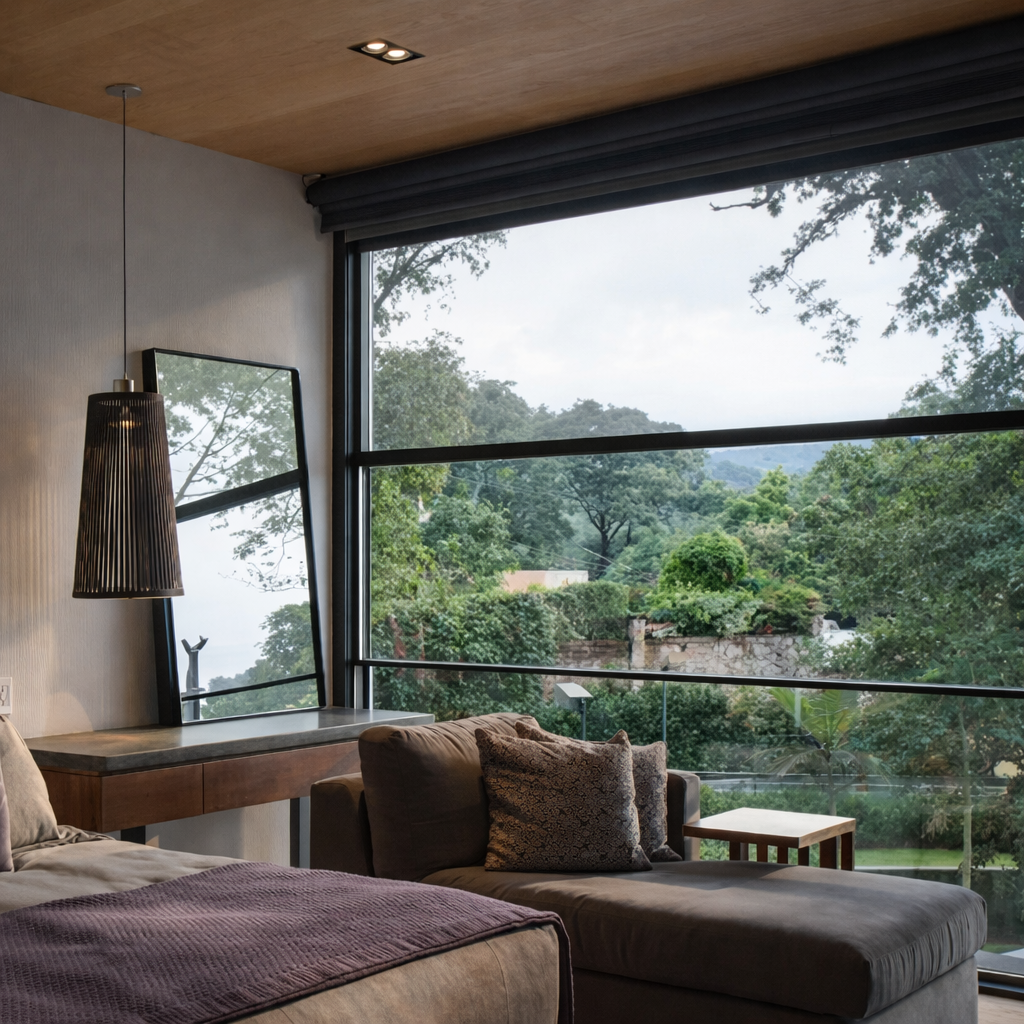

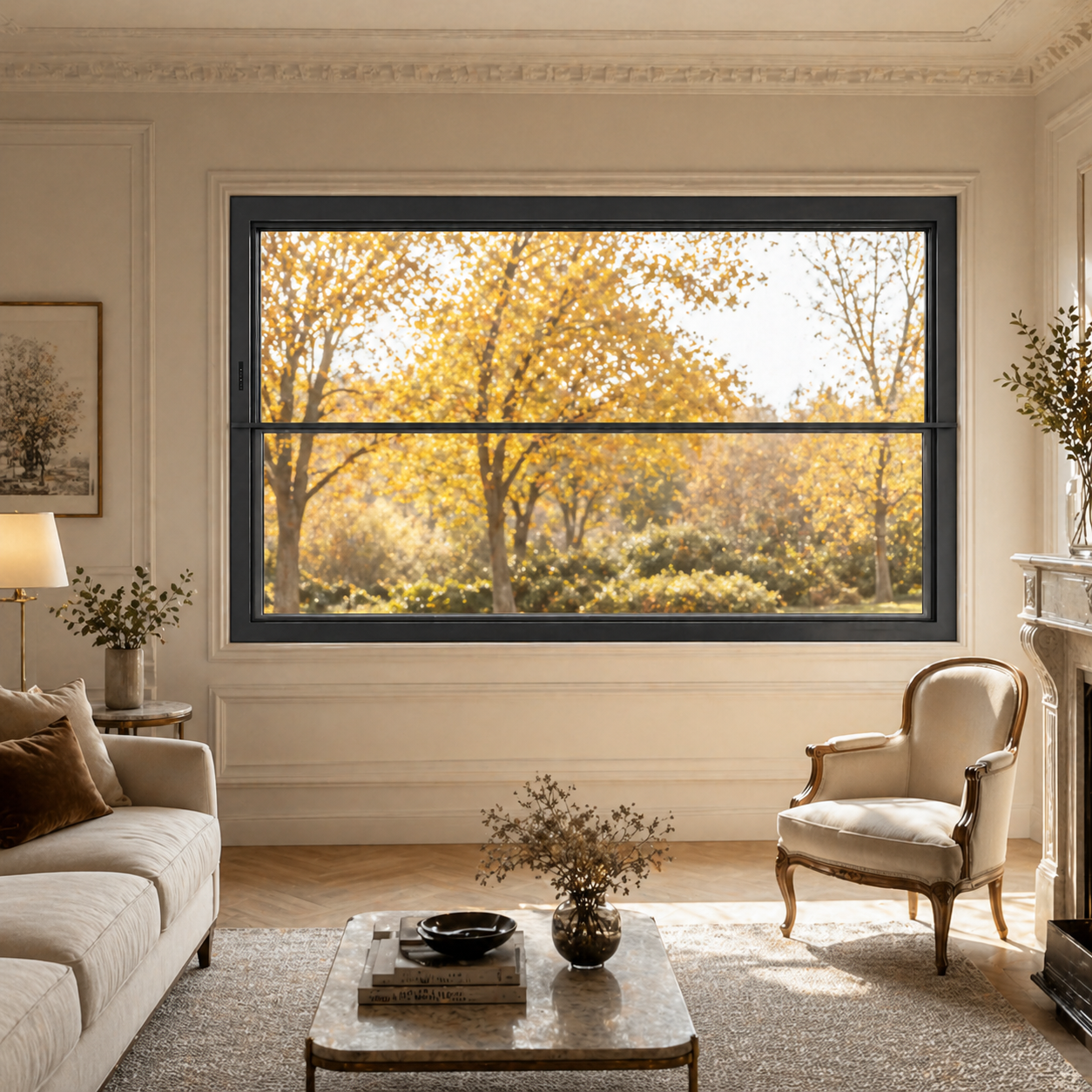

Clear, Uninterrupted Panoramas
Ultra-slim visible frames combined with large glass panels maximize daylight and outdoor views, transforming balconies, cafés, and commercial spaces into open, breathable environments.

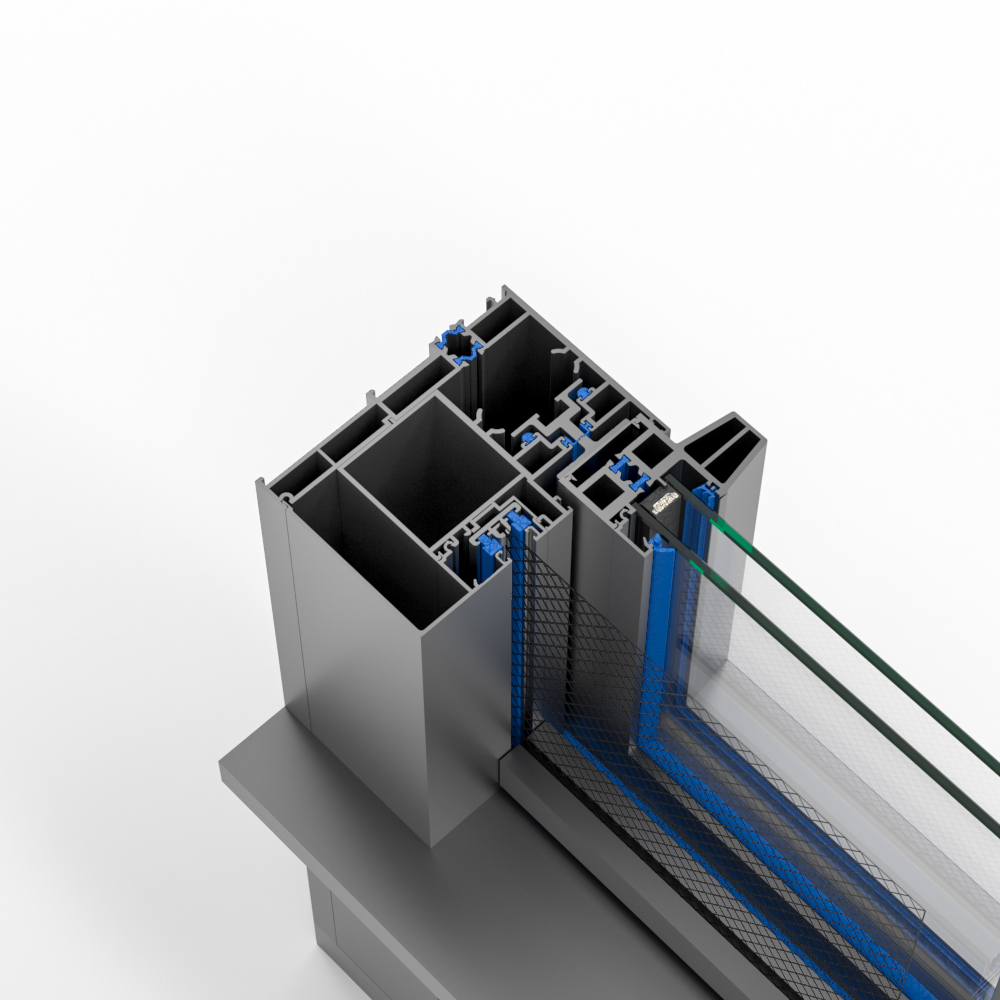

Industrial Design

Panel frame 5.0mm; outer frame 2.6mm.

Fixed panel 6+18A+6 XinYi Insulated glass or Laminated Safety Glass

Lifting panel 6+18A+6 XinYi Insulated glass or Laminated Safety Glass

(Glass thickness can be customized separately for the fixed panels and lifting panels to meet different project needs.)

Exterior Finish

We understand that long-lasting protection is your core requirement for windows and doors. That’s why all LUYISI products come standard with high-performance, eco-friendly powder coating, with strict quality control from material to process:

Passes rigorous 2,000+ hour salt spray testing, featuring strong adhesion, scratch resistance, weather and corrosion durability. Colors remain vibrant even after long-term exposure to sun and rain;

Eco-friendly process: 99% paint utilization rate, solvent-free, adheres to metal surfaces via electrostatic adsorption, and forms a uniform film after high-temperature curing (180℃~200℃ baking) with lower energy consumption, aligning with green home concepts;

Optional premium finishes: Fluorocarbon Coating and Ceramic Coating available for customization, balancing performance and aesthetic expression.Custom Colors：

Any color, any window/door style—if you can imagine it, LUYISI can create it!Whether you have a specific shade in mind or seek unique customization, we’ll match your exact color needs, letting you own the exclusive hue you’ve always wanted. Plus, enjoy personalized color naming rights and a 15-year warranty for total peace of mind.

Intelligent System

A trinity of intelligence: touch control, radar sensing, and AI algorithm. Features 24V safe voltage, security system linkage, and anti-pinch protection. With adjustable speed and a dedicated quiet mode for meetings/rest.

Screen Mesh

Panoramic narrow-frame sliding doors maintain aesthetic appeal while offering optional roller screen insect and debris protection.

Features 304 flexible diamond mesh for high clarity and transparency. Ultra-narrow 32mm-thick screen housing with imported bearings ensures smooth, rust-free operation without jamming. Designed to withstand strong winds, with built-in concealed magnetic strips for enhanced aesthetics and a sleek handle.

Note: This screen cannot be adjusted electrically.
