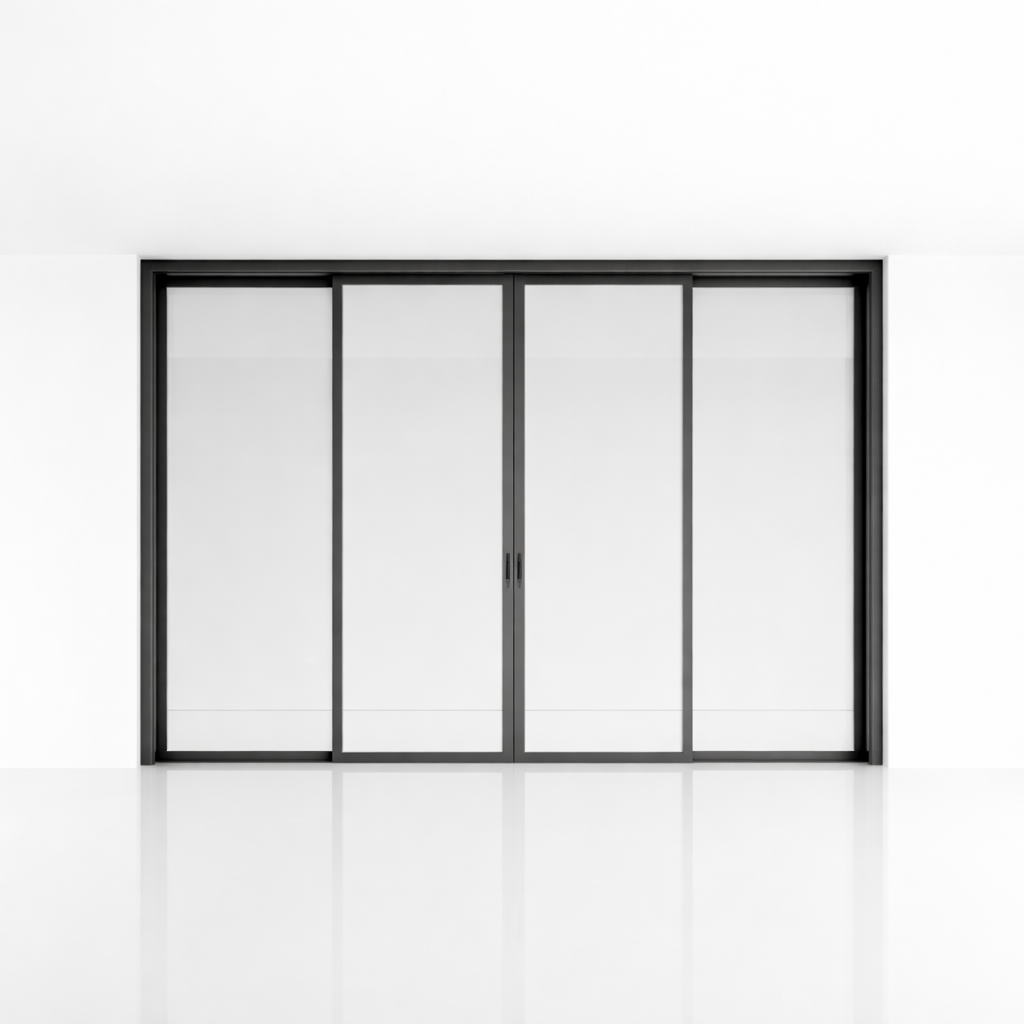

65 Series Narrow Frame Aluminum Glass Sliding Door

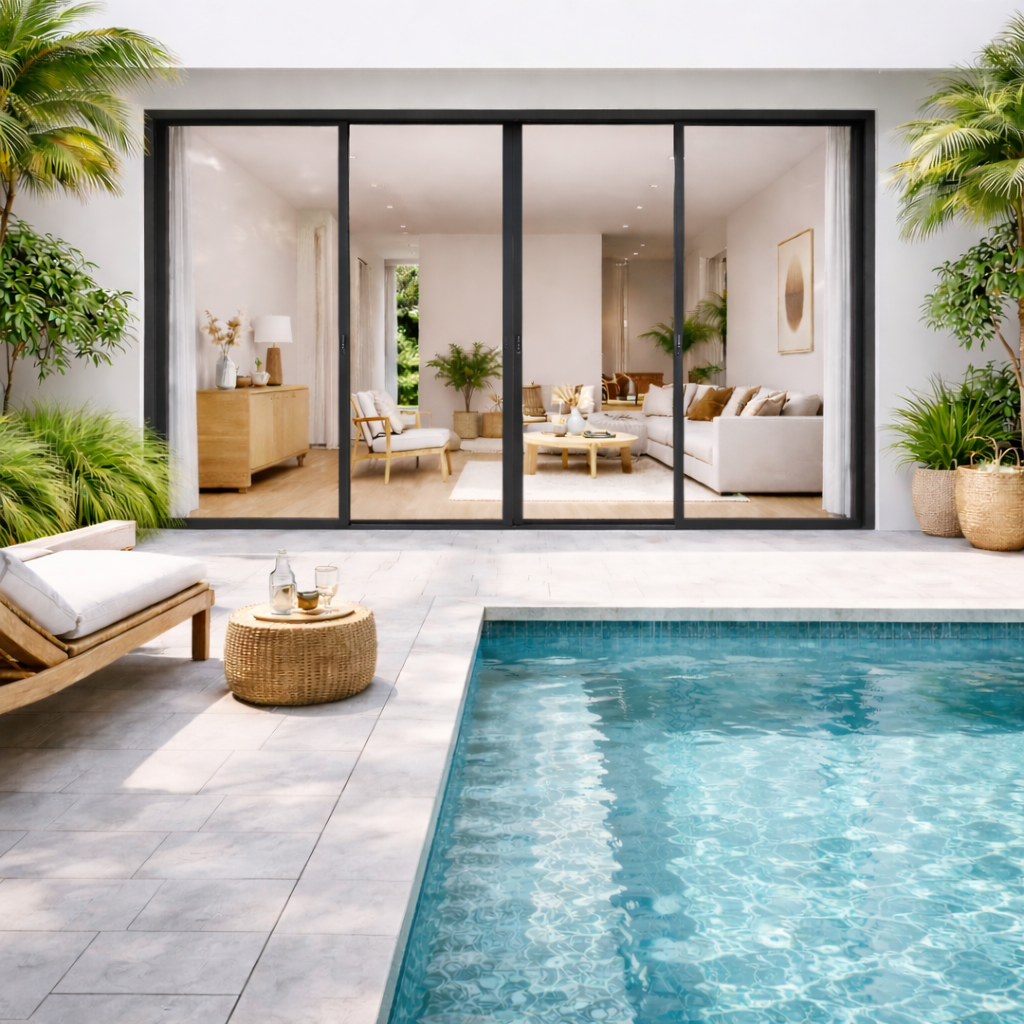

Villas / Patios / Gardens / Commercial Spaces

Coastal regions | Hot regions | Windy regions | Cold regions

Coastal areas | Hot regions | Windy regions

Why love it?

Every parameter stands up to scrutiny
HEAT INSULLATION: U-VALUE 2.6-2.8 W/m²K
SOUNDINSULATION:35-40dB
WATERPROOF:≥400Pa
AIR TTIGHTNESS:q1=0.7;q2=1.6
WIND RESISANT:≥4100kPa

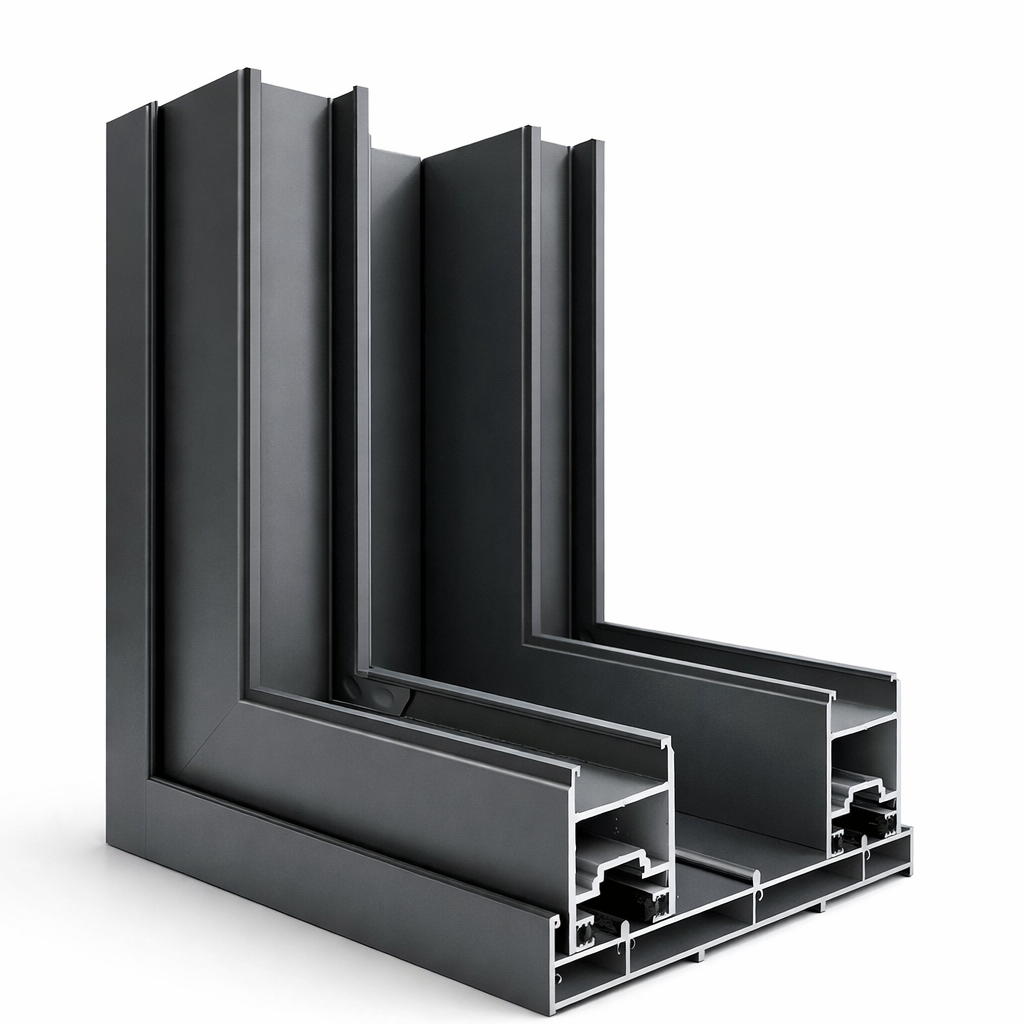

Sturdy construction
Equipped with 5+18A+5 insulating glass, 2.5mm panel thickness, and 1.6mm outer frame thickness for enhanced strength and stability.

Balancing Aesthetics and Performance
Embedded edge trimming with multi-seal design, paired with concealed drainage. Combined with high-quality sealing strips and siliconized brush strips, it delivers superior waterproofing and enhanced safety.

Industrial Design

Designed for high-rises:

Panel frame 3.0mm; outer frame 1.6mm
5+20A+5 XinYi Insulated glass

Exterior Finish

We understand that long-lasting protection is your core requirement for windows and doors. That’s why all LUYISI products come standard with high-performance, eco-friendly powder coating, with strict quality control from material to process:

Passes rigorous 2,000+ hour salt spray testing, featuring strong adhesion, scratch resistance, weather and corrosion durability. Colors remain vibrant even after long-term exposure to sun and rain;

Eco-friendly process: 99% paint utilization rate, solvent-free, adheres to metal surfaces via electrostatic adsorption, and forms a uniform film after high-temperature curing (180℃~200℃ baking) with lower energy consumption, aligning with green home concepts;

Optional premium finishes: Fluorocarbon Coating and Ceramic Coating available for customization, balancing performance and aesthetic expression.Custom Colors：

Any color, any window/door style—if you can imagine it, LUYISI can create it!Whether you have a specific shade in mind or seek unique customization, we’ll match your exact color needs, letting you own the exclusive hue you’ve always wanted. Plus, enjoy personalized color naming rights and a 15-year warranty for total peace of mind.

Glass

Glass Craftsmanship
Multiple glass craftsmanship options are available to meet the unique requirements of each project. Additionally, insulated glass units come in clear, green, brown, or various tinted colors, and can incorporate built-in blinds.

Energy Efficiency & Environmental Protection
Our standard glass configuration features double-pane insulated glass with low-emissivity (Low-E) coating: both panes are coated with a low-emissivity layer and filled with xenon gas for thermal insulation. Low-E glass, also known as low-emissivity coated glass, features multiple layers of metal or chemical coatings on its surface that reflect infrared and ultraviolet radiation. While standard glass has an emissivity as high as 0.84, Low-E glass reduces emissivity to below 0.15. We offer various specifications to meet global climate and regulatory requirements. For details, please refer to our product catalog's glass section.

Specialty Glass Options
Our specialty glass portfolio encompasses materials for diverse requirements, including sound control (STC/OITC) glass, solutions for tropical desert climates, and high-altitude glass. Additionally, we provide laminated glass specifically engineered for hurricane-prone regions.

Glass process images are for illustrative purposes only. For inquiries regarding specialized glass treatments, please contact us separately.

Hardware

Wheel System: opk Top-Mounted Wheels + LUYISI Custom Heavy-Duty Steel Wheel System. Designed for panels of varying sizes and weights, the clamp-style installation and flat cross-section allow wheel assemblies to be stacked continuously.

Style and Design

The multi-pane glass panel design on door leaves offers an unobstructed view from indoors and a classical rhythm to the building facade. For those seeking historical authenticity, genuine muntin glass employs individual glass panes. Glass muntins come in various styles that mimic the appearance of single-pane windows within frames while maintaining the energy efficiency of single-pane glass.

Aluminum Spacer Bars—Featuring snap-on clips on the door frame exterior, these bars create a more secure connection with the frame, enhancing overall structural strength and ease of maintenance. A choice where aesthetics take precedence over function.

Double-Glazed Spacer Bars—Permanently installed grids between glass panels ensure low maintenance, a smooth appearance, and easy cleaning while maintaining decorative style. Available in multiple interior and exterior color options.

Screen Mesh

Panoramic narrow-frame sliding doors maintain aesthetic appeal while offering optional roller screen insect and debris protection.
Features 304 flexible diamond mesh for high clarity and transparency. Ultra-narrow 32mm-thick screen housing with imported bearings ensures smooth, rust-free operation without jamming. Designed to withstand strong winds, with built-in concealed magnetic strips for enhanced aesthetics and a sleek handle.
Note: This screen cannot be adjusted electrically.

Intelligent System

A trinity of intelligence: touch control, radar sensing, and AI algorithm. Features 24V safe voltage, security system linkage, and anti-pinch protection. With adjustable speed and a dedicated quiet mode for meetings/rest.

Opening Method
The 65Narrow Frame Sliding Door can accommodate a maximum panel size of 1100mm (width) × 2800mm (height) with a load capacity of up to 500kg. The maximum panel size is 600mm (width) × 2000mm (height) with a load capacity of up to 200kg.

For custom door panels exceeding these dimensions, we recommend integrating fixed panels to accommodate window openings while ensuring structural stability and sealing integrity.

Opening Configuration
One fixed panel with one operable panel, two sliding panels, three sliding panels (center fixed with two operable panels)
