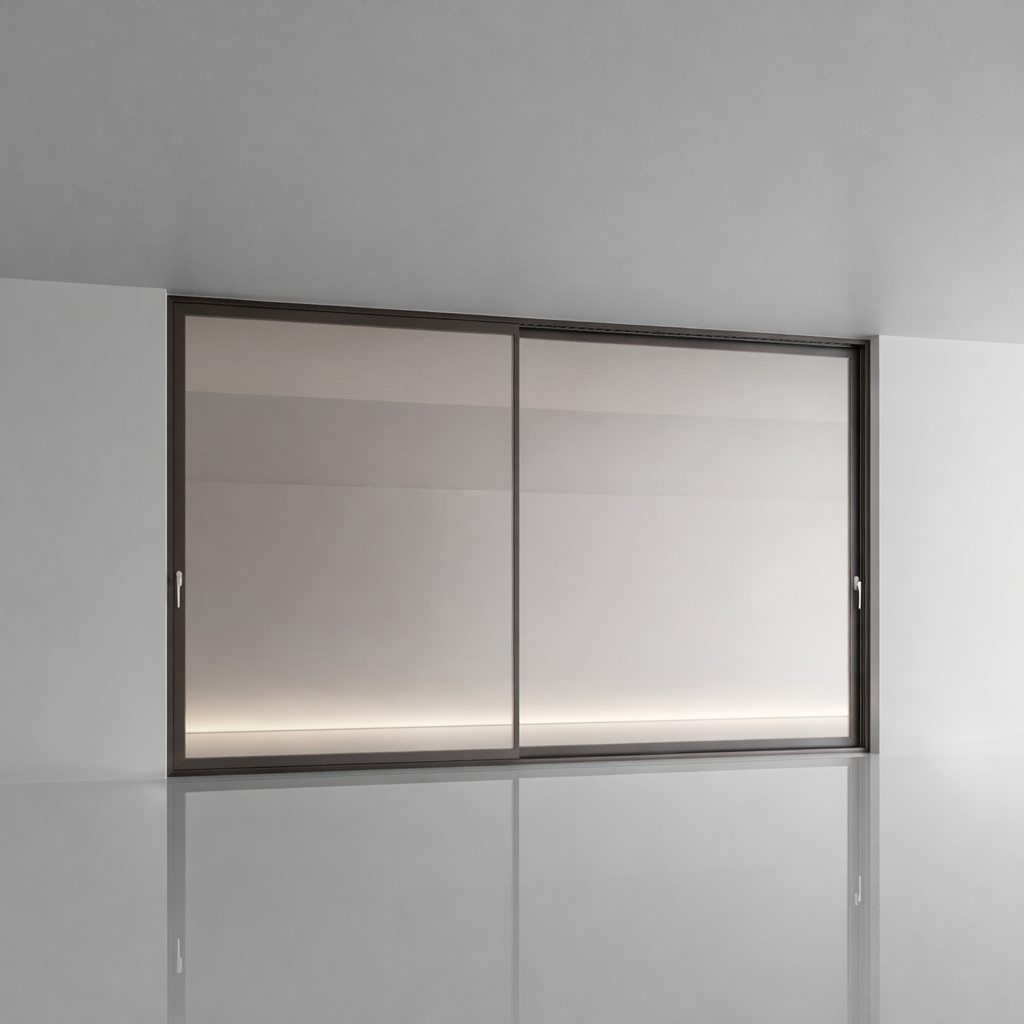

140 Series Premium Lift & Slide Door for Balcony

Designed for high-rises

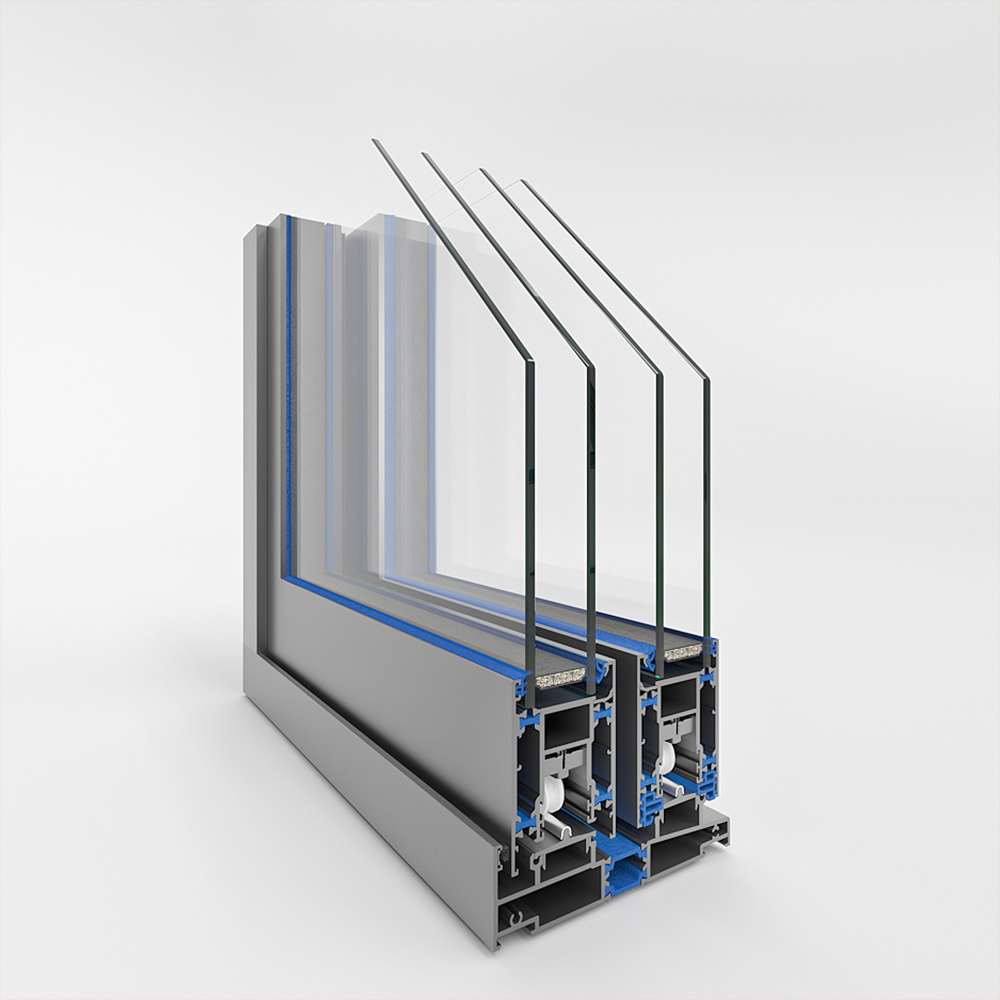

Panel frame 2.5mm; outer frame 2.0mm.
5+27A+5 XinYi Insulated glass

We understand that long-lasting protection is your core requirement for windows and doors. That’s why all LUYISI products come standard with high-performance, eco-friendly powder coating, with strict quality control from material to process:

Passes rigorous 2,000+ hour salt spray testing, featuring strong adhesion, scratch resistance, weather and corrosion durability. Colors remain vibrant even after long-term exposure to sun and rain;

Eco-friendly process: 99% paint utilization rate, solvent-free, adheres to metal surfaces via electrostatic adsorption, and forms a uniform film after high-temperature curing (180℃~200℃ baking) with lower energy consumption, aligning with green home concepts;

Optional premium finishes: Fluorocarbon Coating and Ceramic Coating available for customization, balancing performance and aesthetic expression.Custom Colors：
Any color, any window/door style—if you can imagine it, LUYISI can create it!Whether you have a specific shade in mind or seek unique customization, we’ll match your exact color needs, letting you own the exclusive hue you’ve always wanted. Plus, enjoy personalized color naming rights and a 15-year warranty for total peace of mind.

Hardware:System Activation: CMECH Ximeike Heavy-Duty Sliding Door Safety HandleWheel System: Optek Top-Mounted Wheels + LUYISI Custom Heavy-Duty Steel Wheel System. Designed for panels of varying sizes and weights, the clamp-style installation and flat cross-section allow wheel assemblies to be stacked continuously.

Glass Craftsmanship
Multiple glass craftsmanship options are available to meet the unique requirements of each project. Additionally, insulated glass units come in clear, green, brown, or various tinted colors, and can incorporate built-in blinds.

Energy Efficiency & Environmental Protection
Our standard glass configuration features double-pane insulated glass with low-emissivity (Low-E) coating: both panes are coated with a low-emissivity layer and filled with xenon gas for thermal insulation. Low-E glass, also known as low-emissivity coated glass, features multiple layers of metal or chemical coatings on its surface that reflect infrared and ultraviolet radiation. While standard glass has an emissivity as high as 0.84, Low-E glass reduces emissivity to below 0.15. We offer various specifications to meet global climate and regulatory requirements. For details, please refer to our product catalog's glass section.

Specialty Glass Options
Our specialty glass portfolio encompasses materials for diverse requirements, including sound control (STC/OITC) glass, solutions for tropical desert climates, and high-altitude glass. Additionally, we provide laminated glass specifically engineered for hurricane-prone regions.

Glass process images are for illustrative purposes only. For inquiries regarding specialized glass treatments, please contact us separately.

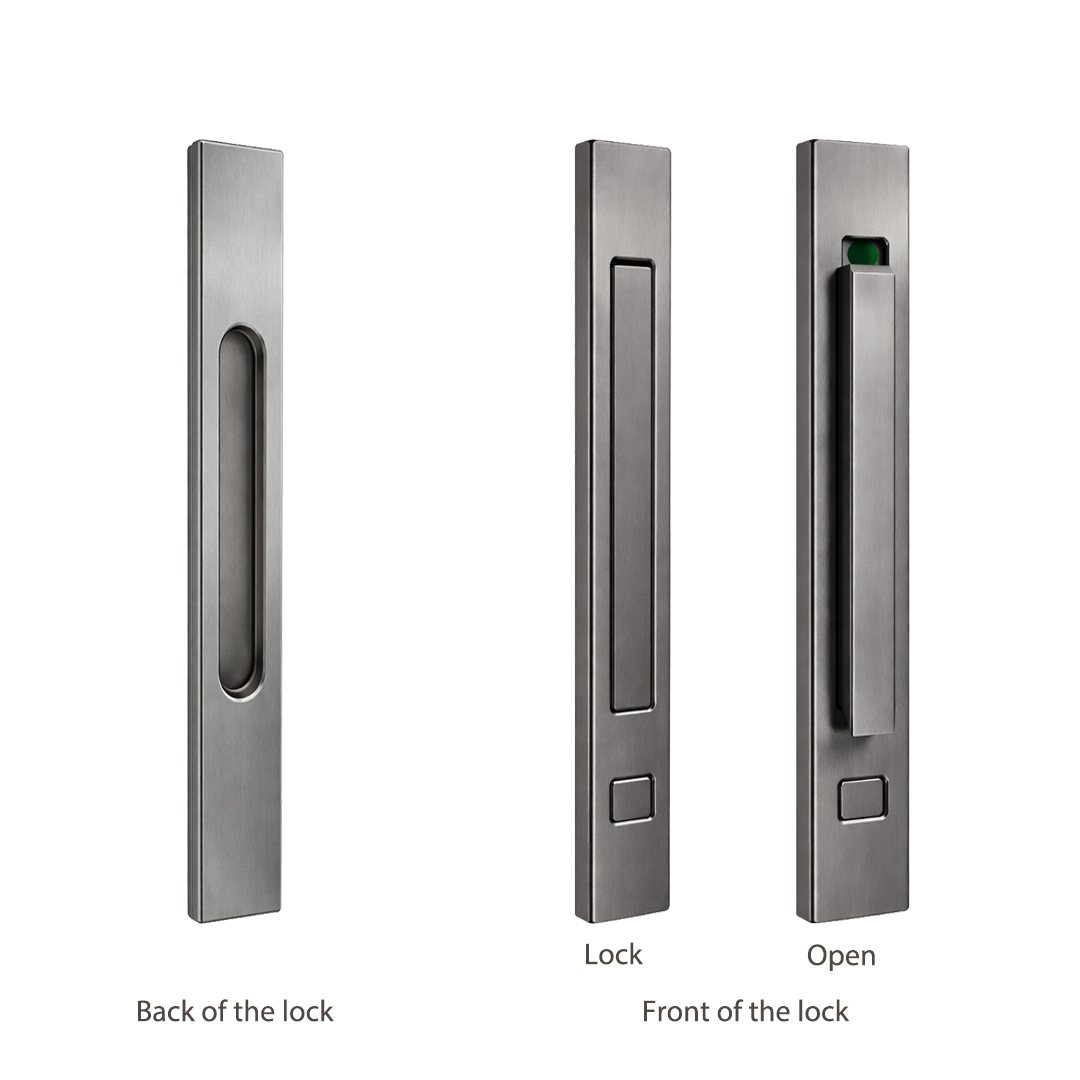

System Activation: CMECH Heavy-Duty Sliding Door Safety Handle

Wheel System: opk Top-Mounted Wheels + LUYISI Custom Heavy-Duty Steel Wheel System. Designed for panels of varying sizes and weights, the clamp-style installation and flat cross-section allow wheel assemblies to be stacked continuously.

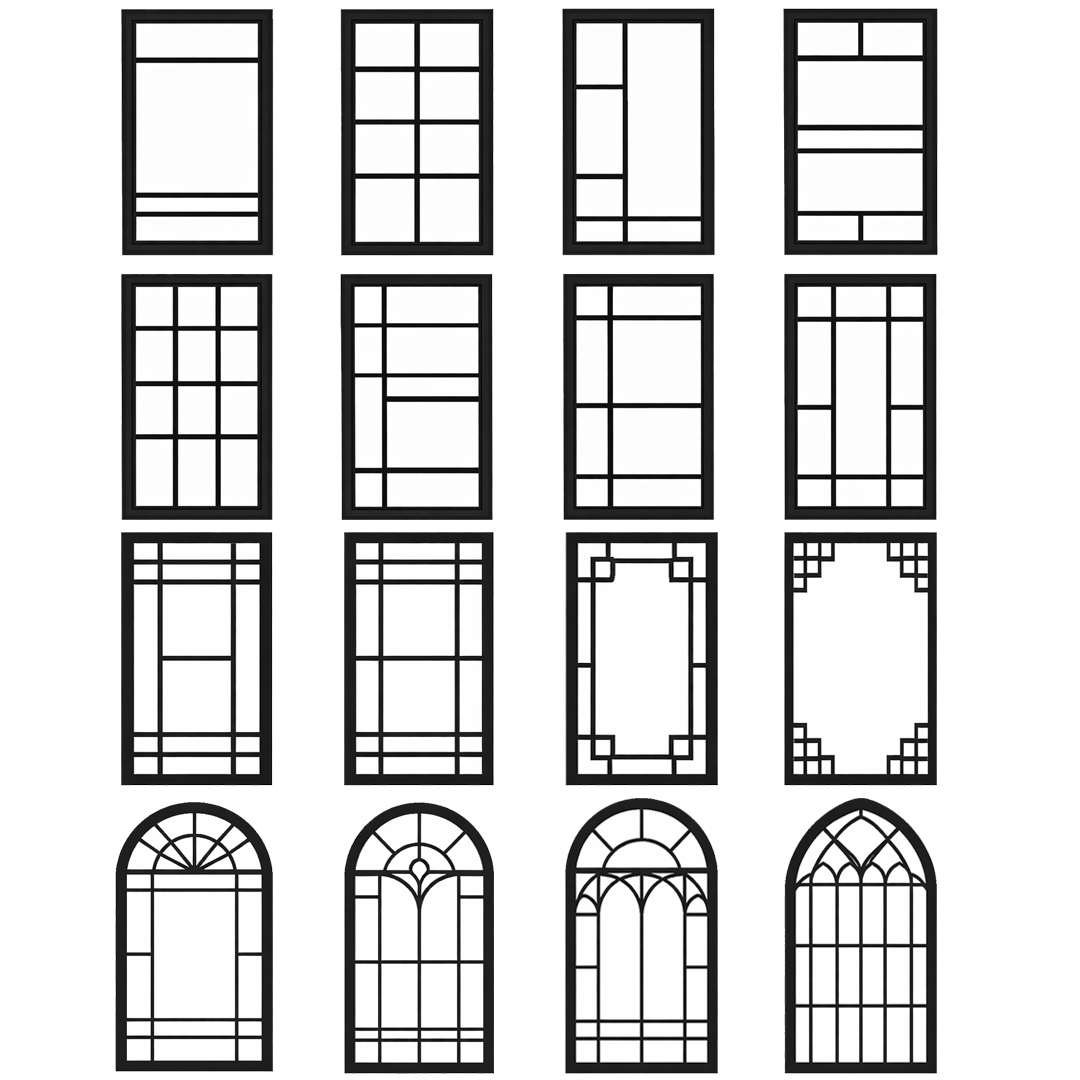

The multi-pane glass panel design on door leaves offers an unobstructed view from indoors and a classical rhythm to the building facade. For those seeking historical authenticity, genuine muntin glass employs individual glass panes. Glass muntins come in various styles that mimic the appearance of single-pane windows within frames while maintaining the energy efficiency of single-pane glass.

Aluminum Spacer Bars—Featuring snap-on clips on the door frame exterior, these bars create a more secure connection with the frame, enhancing overall structural strength and ease of maintenance. A choice where aesthetics take precedence over function.

Double-Glazed Spacer Bars—Permanently installed grids between glass panels ensure low maintenance, a smooth appearance, and easy cleaning while maintaining decorative style. Available in multiple interior and exterior color options.

Panoramic narrow-frame sliding doors maintain aesthetic appeal while offering optional roller screen insect and debris protection.

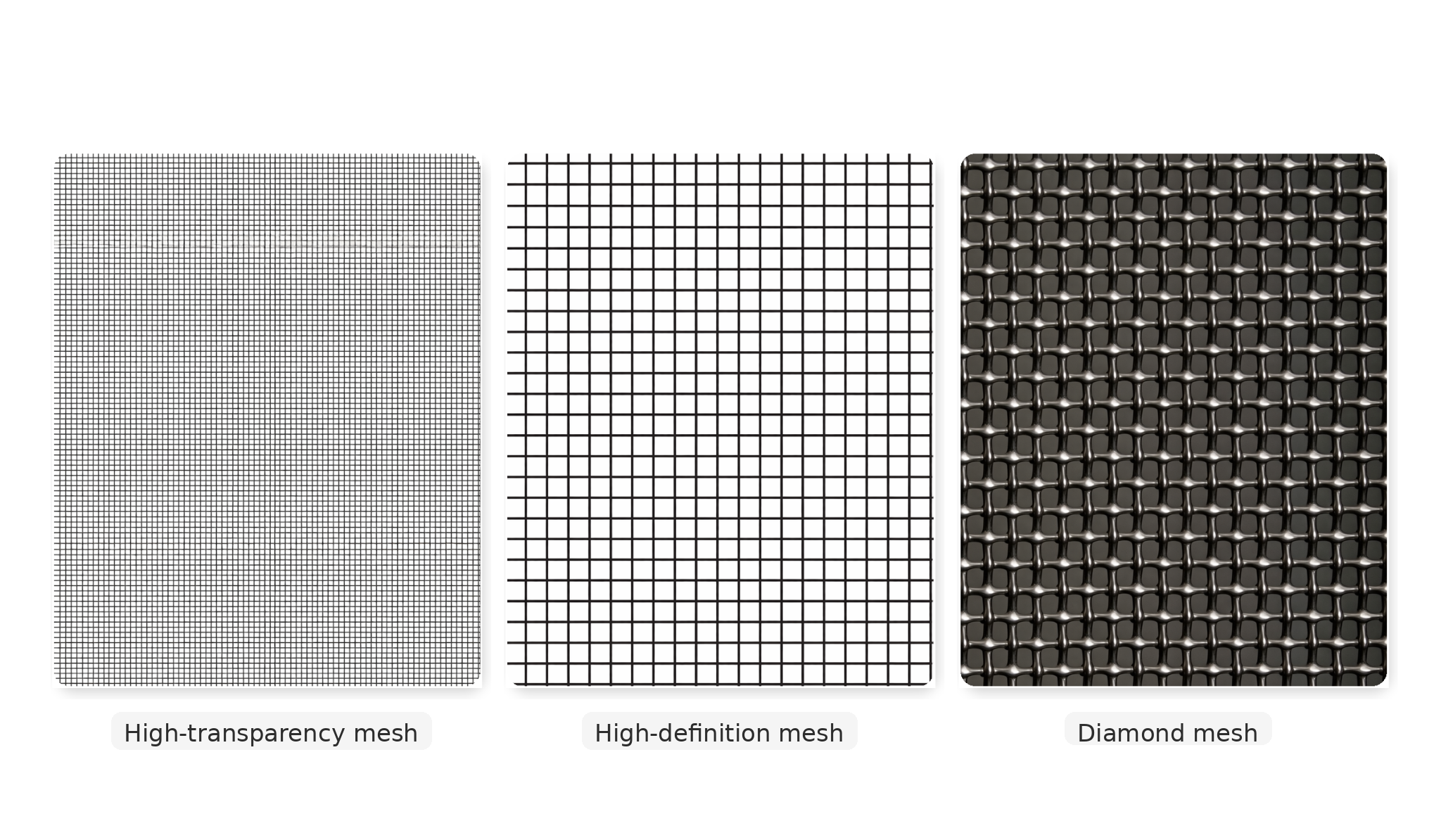

Features 304 flexible diamond mesh for high clarity and transparency. Ultra-narrow 32mm-thick screen housing with imported bearings ensures smooth, rust-free operation without jamming. Designed to withstand strong winds, with built-in concealed magnetic strips for enhanced aesthetics and a sleek handle.

Note: This screen cannot be adjusted electrically.

Opening Method:

The 140 panoramic sliding door can accommodate a maximum panel size of 3500mm (width) × 3800mm (height) with a load capacity of up to 500kg. The maximum panel size is 1500mm (width) × 2000mm (height) with a load capacity of up to 300kg.

For custom door panels exceeding these dimensions, we recommend integrating fixed panels to accommodate window openings while ensuring structural stability and sealing integrity.

Opening Configuration:

One fixed panel with one operable panel, two sliding panels, three sliding panels (center fixed with two operable panels)
